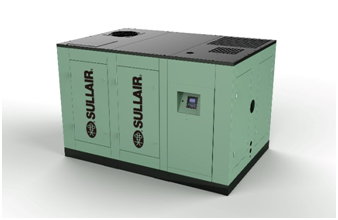

With huge consumption of energy and serious environmental pollution, China also imposes more rigorous requirements on the energy efficiency of air compressors. An air compressor with outstanding performance on energy conservation is consistent with national policies and the “appetite” of customer benefits in terms of energy conservation cost and environmental protection. Therefore, as the leading air compressor manufacturer in the world, Sullair has offered the latest "Energy Conservation Feast"–TH series of double-phase efficient screw air compressors are now for sale on the market Grade-1 energy efficiency, two-stage compression
The perfect combination of “color, flavor and taste” can “substantially increase your appetite” for pursuing energy efficiency
“Flavor”

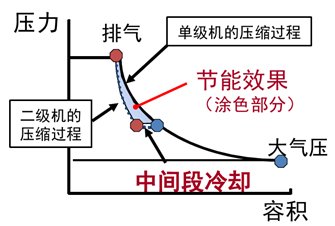

TH series of air compressors are equipped with built-in high-performance air ends and possess the function of two-stage compression to reduce loss from compression leakage and significantly improve compression efficiency.
The two-stage air ends adopt the structure of parallel connection which can substantially extend the lifespan of bearings. Meanwhile, the design of pitch lines and grooved lines for compressor rotors have also substantially reduced internal leakage.
“Taste”
The most prominent highlight of TH series of air compressors is that its energy efficiency indicator has reached the National Grade-1 energy label. Compared with Grade-2 and Grade-3 energy efficiency products, TH series of air compressors possess self-evident environmental protection advantages and cost advantages.
In fact, Grade-1 energy efficiency indicators bring benefits far more than just a certification to companies. In terms of cost saving, it also outweighs other products by much more than just one grade.

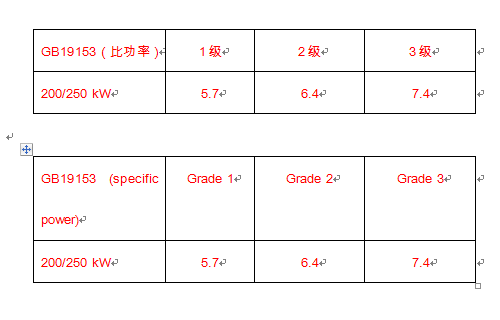

It is estimated that Grade-1 energy efficiency energy-conservation products can
Save 12% more electricity compared with Grade-2 energy efficiency products
Save 30% more electricity compared with Grade-3 energy efficiency products
Suppose a TH200HWC air compressor is used for a year with operation time of 8,000 hours, air displacement of 41.2 m3/min, and discharge pressure of 0.8MPa, and the price of commercial power is 1.0 yuan per KWH:
Compared with a Grade-3 energy efficiency air compressor:
[7.4 kW/（m3/min）-5.7 kW/（m3/min）]×41.2(m3/min)×8000(h)×1.0元/（kW?h）=560320(RMB)
Compared with a Grade-2 energy efficiency air compressor:
[6.4 kW/（m3/min）-5.7 kW/（m3/min）)]×41.2(m3/min)×8000(h)×1.0元/（kW?h）=230720(RMB)
This is the incomparable advantage of the TH series air compressors!
“Color”
Of course, as a powerful faction, the “TH series air compressors” also do not concede even in the slightest way when it comes to “appearance”.
In terms of appearance and configuration, TA possesses the complete standard configuration of air filter, IE3 efficient motor, two-stage oil air separator, drain valve and Sullube lubricant and the optional configuration of air inlet capacity adjustment valves and VSD etc.
Compared with the current TS160-280 series, TH series of air compressors are smaller in size, but possess more powerful functions.
In addition, TH series of air compressors are also equipped with six major protection functions: high-temperature protection, pressure protection, high pressure difference (alerting), current overload protection, phase sequence protection and cooling water pressure. While saving cost, they also wholeheartedly safeguard production safety.
Providing a high-quality air compression system is the core of Sullair
Protecting the environment is even more the compelling responsibility of Sullair
TH series of Air Compressors now represent Sullair’s trace of green
Shoulder the mission and stride ahead!
